MELF Resistor
MELF HIGH VOLTAGE RESISTOR
- 관리자
- 2021-06-28
- 조회: 163
0207 / 0309

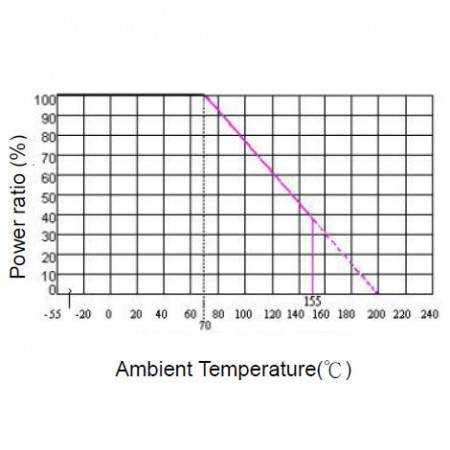

Derating Curve

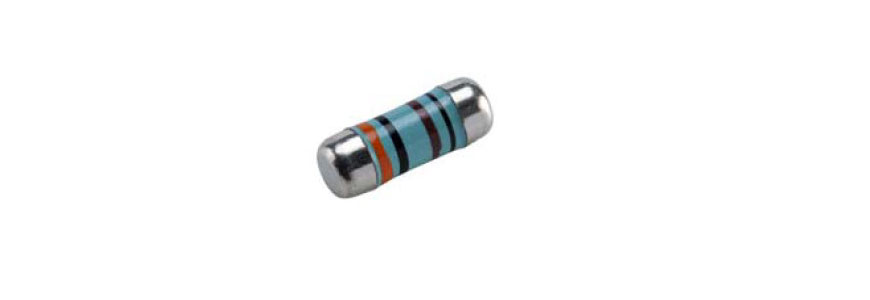

High voltage MELF metal film precision resistor, ready for the size of 0207/0309 , 1%, 100/200ppm. 1K~100Mohm. Max Overload upto 2500V. The MELF is cylindrical in shape and with metal electrode Leadless face resistor. Land pattern sizes are the same as SMD chip resistors. High quality of MELF resistors offer excellent electrical and Environmental Stability, exceptional stability demonstrated over life, biased humidity, and short time overload testing.
Features
- For SMD enabled structure.
- It is epoxy resin coating material.
- Lowest TCR control to 25ppm, normal type is 5% 200ppm, 1% 100ppm, 0.5% 50ppm.
- High voltage applications for power capacitor, motor start-up protection, car & motorcycle engine ignition, etc. other surge energy request able to design for engineer design request.

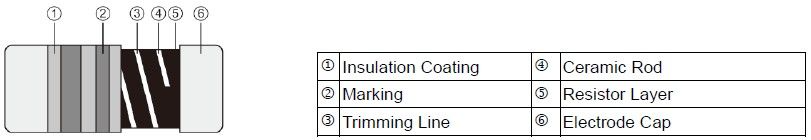

Construction
Part Numbering
Standard Electrical Specifications
| ±1% | ±5% | ||||||
|---|---|---|---|---|---|---|---|
| Item Type | Power Rating at 70°C | Operating Temp. Range | Max. Operating Voltage | Max. Overload Voltage | Resistance Range | TCR (PPM/°C) | |
| 0207 | 1/2W | -55 ~ +155°C | 500V | 700V | 100KΩ - 22MΩ | ±100 ±200 | |
| 0309 | 1W | -55 ~ +155°C | 700V | 1000V | 100KΩ - 22MΩ | ±100 ±200 | |
Pulse Properties
This test condition is follow UL 1676 and EN 60065 is pulse wave and test circuit, but the high voltage test is follow standard electrical specification.
