Thin Film Resistor
GENERAL PURPOSE THIN FILM RESISTOR
- 관리자
- 2021-06-24
- 조회: 190
0402 / 0603 / 0805 / 1206

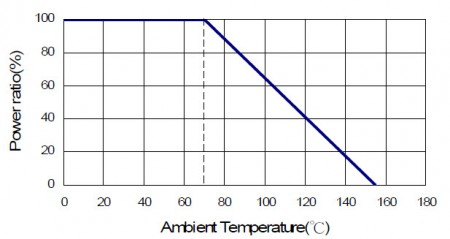

Derating Curve
Thin film NiCr resistor, Size from 0402-1206, 0.1% , low TCR 25-50ppm , Wide range of 1ohm-3Mohm, General purpose for accurate resistor, Low cost and good performance. Wide applications for various electronics devices.
Features
- Advanced thin film technology.
- SMD Type designed for automatic insertion.
- Wide resistance range 1ohm ~ 2.49Mega ohm.
Applications
- Medical Equipment
- Testing / Measurement Equipment
- Printer Equipment
- Automatic Equipment Controller
- Converters
- Communication Device, Cell Phone, GPS, PDA

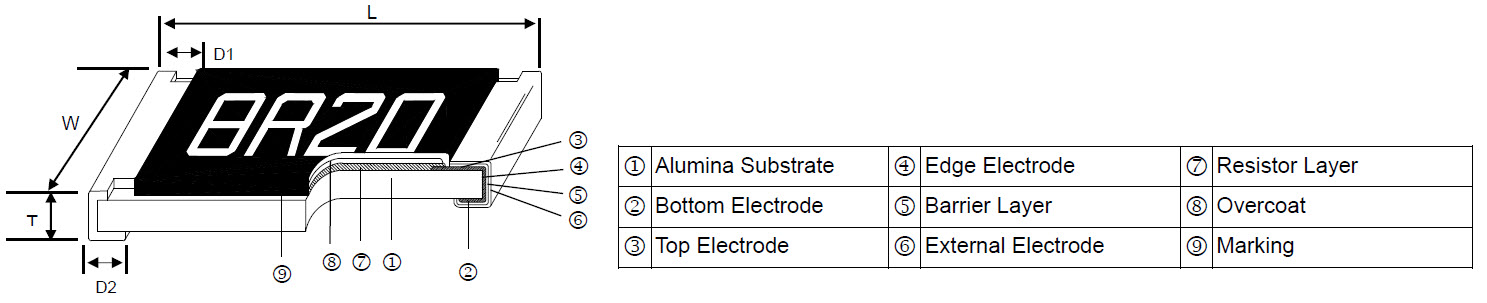

Construction

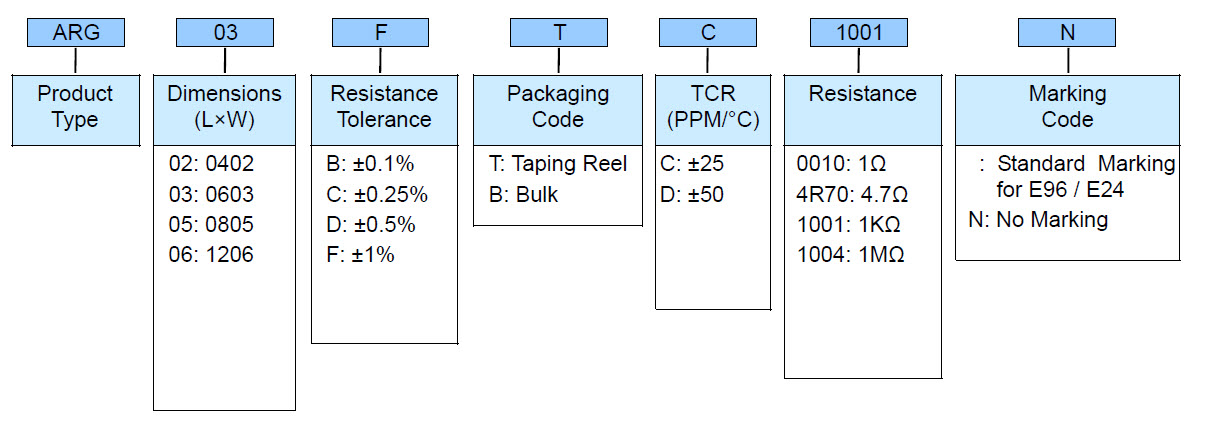

Part Numbering
Standard Electrical Specifications
| ±0.1% | ±0.25% | ±0.5% | ±1% | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Type | Power Rating at 70°C | Operating Temp. Range | Max. Operating Voltage | Max. Overload Voltage | Resistance Range | TCR (PPM/°C) | |||
| ARG02 (0402) | 1/16W | -55 ~ +155°C | 50V | 100V | 4.7Ω – 255KΩ | ±25 ±50 | |||
| ARG03 (0603) | 1/10W | -55 ~ +155°C | 75V | 150V | 1Ω - 1MΩ | ±25 ±50 | |||
| ARG05 (0805) | 1/8W | -55 ~ +155°C | 150V | 300V | 1Ω - 2MΩ | ±25 ±50 | |||
| ARG06 (1206) | 1/4W | -55 ~ +155°C | 200V | 400V | 1Ω - 2.49MΩ | ±25 ±50 | |||
Operating Voltage=√(P*R) or Max. operating voltage listed above, whichever is lower.
Overload Voltage=2.5*√(P*R) or Max. overload voltage listed above, whichever is lower.
☑ Viking is capable of manufacturing the optional spec based on customer's requirement.
(Lower Resistance:1~10Ω ; High Power Rating)
