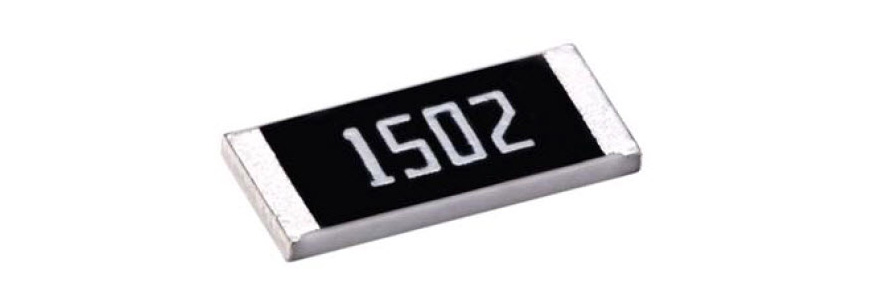

Thick Film Resistor
CR SERIES
- 관리자
- 2021-07-01
- 조회: 337
01005 / 0201 / 0402 / 0603 / 0805 / 1206 / 1210 / 2010 / 2512 / 1225 / 0612

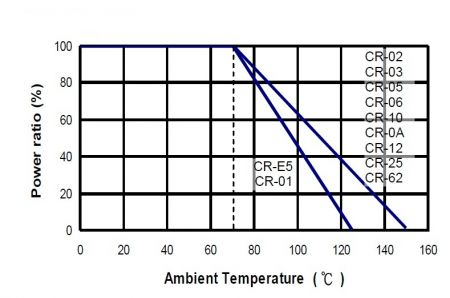

Derating Curve
General purpose thick film resistor, Resistance 1ohm to100Mohm, sizes from 01005~2512, high power, low TCR is available. Special long termination offers high power. Low TC50 and high power in standard sizes are available. These rectangular resistors are high stability for any electronic applications.
Scope
- This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.
Features
- Small size and light weight.
- Highly reliable multilayer electrode construction.
- Compatible with all soldering process.
- Long side terminations.
Applications
- Telecommunication Equipments
- Radio and Tape Recorders, TV Tuners
- Digital Cameras, Watches, Pocket Calculators
- Computers, Instruments
- Medical and Military Equipment

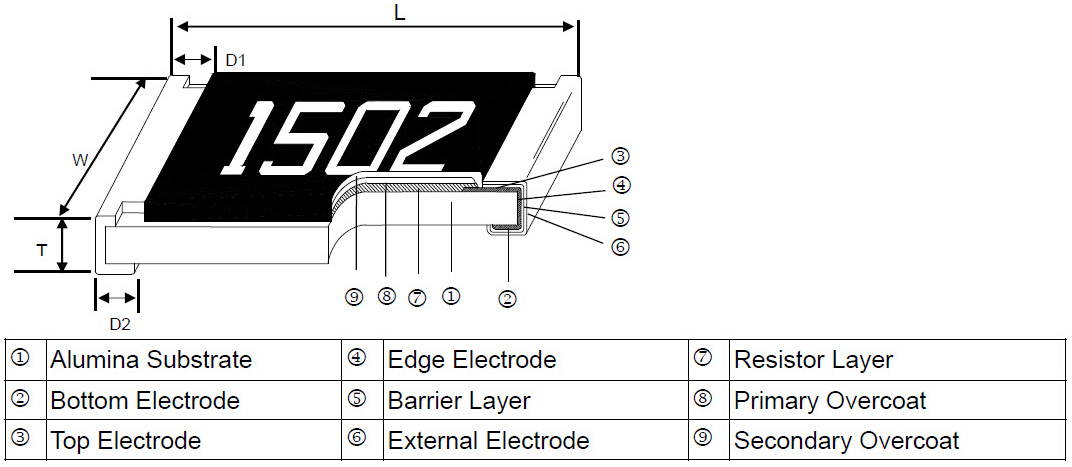

Construction

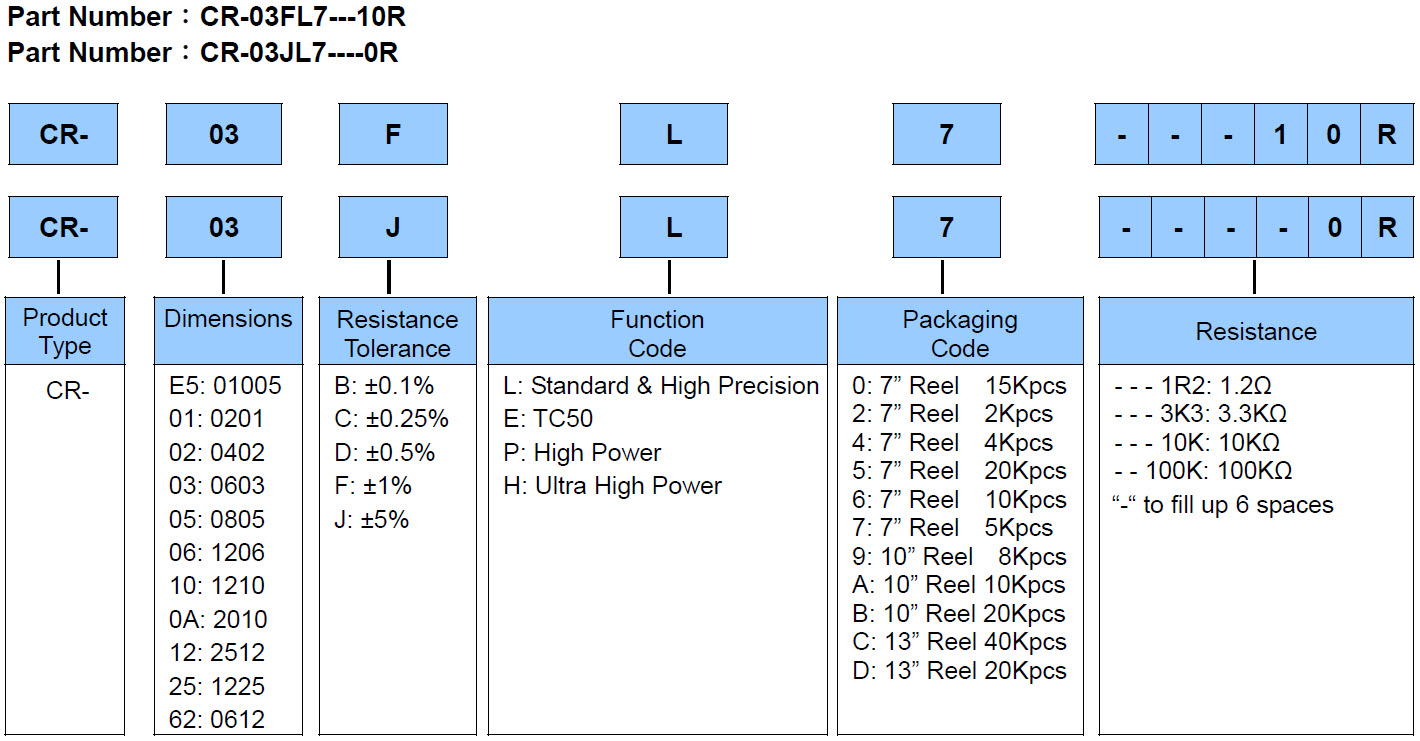

Part Numbering
Standard Electrical Specifications
| ±1%(E24、E96) | ±5%(E24) | ||||||
|---|---|---|---|---|---|---|---|
| Item Type | Power Rating at 70°C Jumper Rated Current | Operating Temp. Range | Max. Operating Voltage | Max. Overload Voltage | Resistance Range | TCR (PPM/°C) | |
| CR-E5 (01005) | 1/32W | -55 ~ +125°C | 15V | 30V | 10Ω - 1MΩ | ±300 | |
| Jumper: 0.5A | 0Ω (<50mΩ) | - | |||||
| CR-01 (0201) | 1/20W | -55 ~ +125°C | 25V | 50V | 1Ω - 10MΩ | ±200 | |
| Jumper: 1A | 0Ω (<50mΩ) | - | |||||
| CR-02 (0402) | 1/16W | -55 ~ +155°C | 50V | 100V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ | ±200 ±100 ±200 ±400 | |
| Jumper: 1A | 0Ω (<50mΩ) | - | |||||
| CR-03 (0603) | 1/10W | -55 ~ +155°C | 75V | 150V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ | ±200 ±100 ±200 ±400 | |
| Jumper: 1A | 0Ω (<50mΩ) | - | |||||
| CR-05 (0805) | 1/8W | -55 ~ +155°C | 150V | 300V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ | ±200 ±100 ±200 ±400 | |
| Jumper: 2A | 0Ω (<50mΩ) | - | |||||
| CR-06 (1206) | 1/4W | -55 ~ +155°C | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ | ±200 ±100 ±200 ±400 | |
| Jumper: 2A | 0Ω (<50mΩ) | - | |||||
| CR-10 (1210) | 1/3W | -55 ~ +155°C | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 39MΩ | ±200 ±100 ±200 ±400 | |
| Jumper: 2.5A | 0Ω (<50mΩ) | - | |||||
| CR-0A (2010) | 3/4W | -55 ~ +155°C | 200V | 400V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ | ±200 ±100 ±200 ±400 | |
| Jumper: 3.5A | 0Ω (<50mΩ) | - | |||||
| CR-12 (2512) | 1W | -55 ~ +155°C | 250V | 500V | 1Ω - 9.76Ω 10Ω - 1MΩ 1.02MΩ - 20MΩ 20.5MΩ - 100MΩ | ±200 ±100 ±200 ±400 | |
| Jumper: 4A | 0Ω (<50mΩ) | - | |||||
| CR-25 (1225) | 2W | -55 ~ +155°C | 200V | 400V | 10Ω – 20KΩ | ±100 | |
| Jumper: 10A | 0Ω (<20mΩ) | - | |||||
| CR-62 (0612) | 0.75W | -55 ~ +155°C | 200V | 400V | 1Ω~1MΩ | ±100 | |
- Files DownloadRoHS Report
