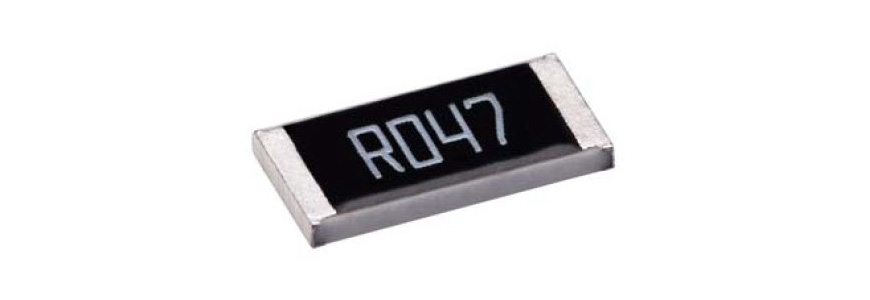

Metal Low Ohm Resistor
CSM SERIES
- 관리자
- 2021-07-01
- 조회: 360
0603 / 0805 / 1206 / 2010 / 2512
Standard Power Derating Curve

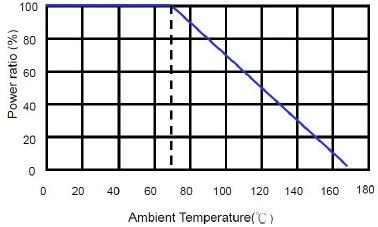

High Power Derating Curve
Metal Foil Resistors can offer twice the power than general thick film.
Sizes from 0402~2512, 1%, 5%, resistance from 10m~200mohm, low TC of 50/100ppm. 1W in size of 1206, 1/4W in size of 0402
CSM series is constructed with a metal foil resistive element mounted on a ceramic substrate for excellent heat conductivity to enhance power. Metal Foil current sensing resistors meet the accuracy and stability on critical power management design. Better performance in small sizes such as 0402,0603 over thick film process, cost efficient for market competitiveness.
Features
- SMD Type designed for automatic insertion
- (CSM02：The soldering side has a black mark
- on the product surface .)
- High power rating in small size
- Low resistance resistor for current detection
- Metal foil construction ensures high reliability and performance with very low and stable TCR
- Designed for current sense circuits in power electronic systems
- Pb-Free to meet RoHS requirements
- AEC-Q200 Compliance (only High Power Rating)
Applications
- Power Management Applications
- Switching Power Supply
- Over Current Protection in Audio Applications
- Voltage Regulation Module (VRM)
- DC-DC Converter, Battery Pack, Charger, Adaptor

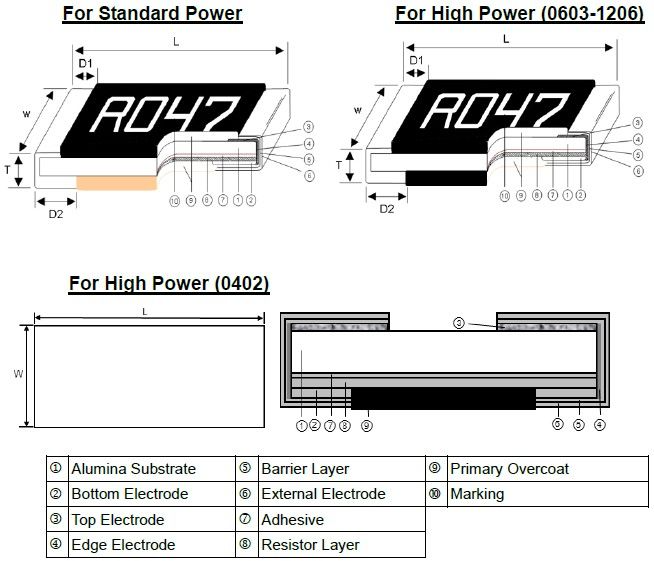

Construction

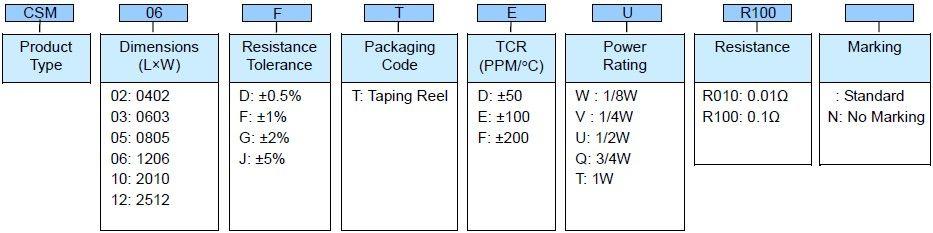

Part Numbering
Standard Electrical Specifications
| ±0.5% | ±1% | ±2% | ±5% | ||||
|---|---|---|---|---|---|---|---|
| Item Type | Power Rating at 70°C | Operating Temp. Range | Resistance Range (mΩ) | TCR (PPM/°C) | |||
| CSM03 (0603) | 1/8W | -55 ~ +155°C | - | 10 - 19 | ±100 | ||
| 20 - 100 | ±50 ±100 | ||||||
| CSM05 (0805) | 1/4W | - | 10 - 19 | ±100 | |||
| 30-100 | 20 - 100 | ±50 ±100 | |||||
| CSM06 (1206) | 1/2W | - | 10 - 19 | ±100 | |||
| 30-100 | 20 - 100 | ±50 ±100 | |||||
| CSM10 (2010) | 3/4W | - | 10 - 19 | ±100 | |||
| 30-100 | 20 - 100 | ±50 ±100 | |||||
| CSM12 (2512) | 1W | - | 10 - 19 | ±100 | |||
| 30-100 | 20 - 100 | ±50 ±100 | |||||
Operating Voltage=√(P*R) ; Overload Voltage=2.5*√(P*R) ; Operating Current=√(P/R)
☑ Viking is capable of manufacturing the optional spec based on customer's requirement.
