Current Sensing Resistor TCS SERIES

관리자
2021-07-01
조회: 732

0402 / 0603 / 0805 / 1206 / 2010 / 2512

Thin Film Current Sensing Chip Resistor - TCS Series Files Download

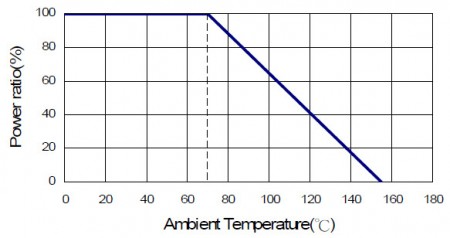

Derating Curve

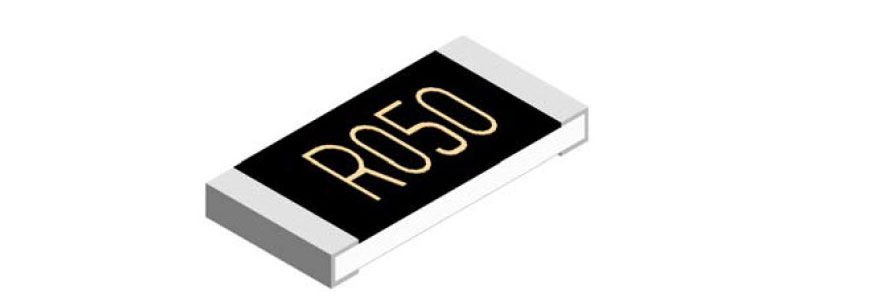

Thin film technology for high precision current sensing resistor with very low TC. Sizes from 0402-2512. Resistance range 50m-1Rohm. 2512 3W High power is available.

Features

Thin film process.
High power rating up to 3 Watts in 2512 size.
Tight tolerance down to ±0.5%.
Extremely low TCR down to ±50 PPM/°C.
Resistance values from 50m to 1ohm.
High purity alumina substrate for high power dissipation.

Applications

Power Management Applications
Switching Power Supply
Over Current Protection in Audio Applications
Voltage Regulation Module (VRM)
DC-DC Converter, Battery Pack, Charger, Adaptor
Automotive Engine Control
Disk Driver
Portable Devices (PDA, Cell Phone)

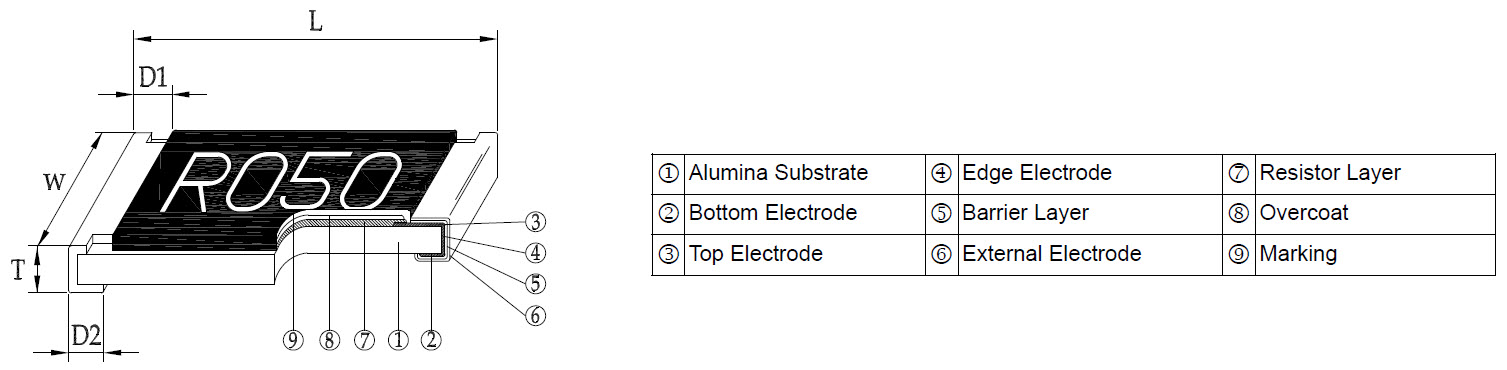

Construction

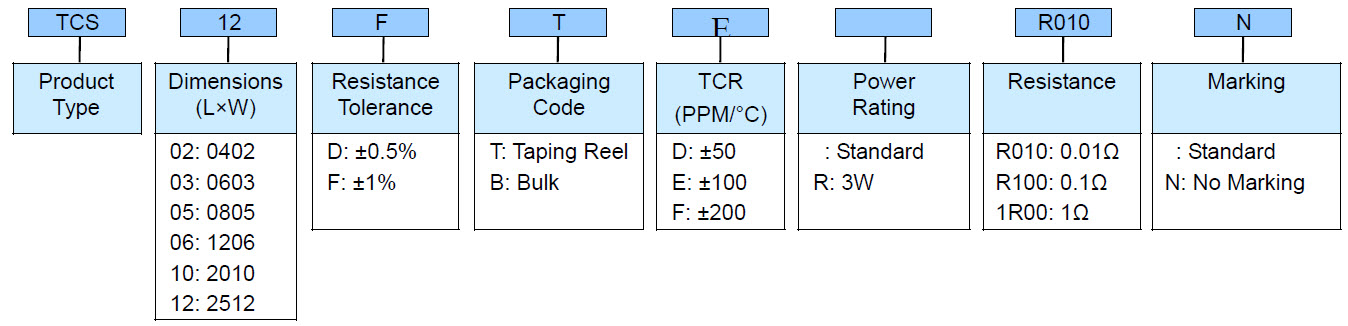

Part Numbering

Standard Electrical Specifications

±0.5%	±1%
Type	Power Rating at 70°C	Operating Temp. Range	Resistance Range (mΩ)		TCR (PPM/°C)
Type	Power Rating at 70°C	Operating Temp. Range	TCS02 (0402)	1/16W	TCR (PPM/°C)	-55~+155°C	500 - 1000	±100 ±50
TCS03 (0603)	1/10W	-55~+155°C	200 - 300 301 - 1000		±100 ±50
TCS05 (0805)	1/8W	-55~+155°C	200 - 300 301 - 1000		±100 ±50
TCS06 (1206)	1/4W	-55~+155°C	-	50 - 100	±200 ±100 ±50
TCS06 (1206)	1/4W	-55~+155°C	101 - 300 301 - 1000		±200 ±100 ±50
TCS10 (2010)	3/4W	-55~+155°C	50 - 100 101 - 300 301 - 1000		±200 ±100 ±50
TCS12 (2512)	1W	-55~+155°C	50 - 100 101 - 300 301 - 1000		±200 ±100 ±50
