Current Sensing Resistor CS SERIES

관리자
2021-07-01
조회: 357

0201 / 0402 / 0603 / 0805 / 1206 / 1210 / 2010 / 2512 / 1225 / 3720 / 7520 / 0612

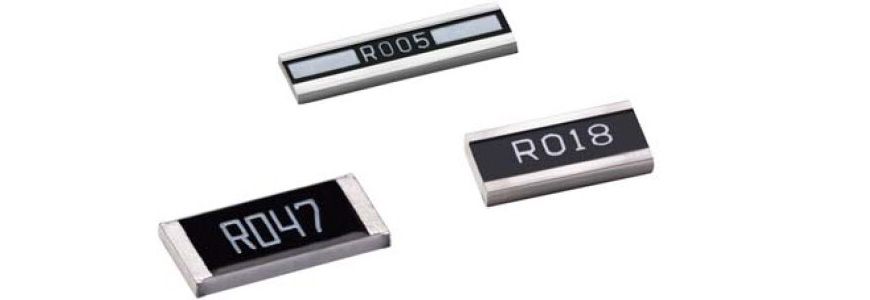

Current Sensing Chip Resistor - CS Series Files Download

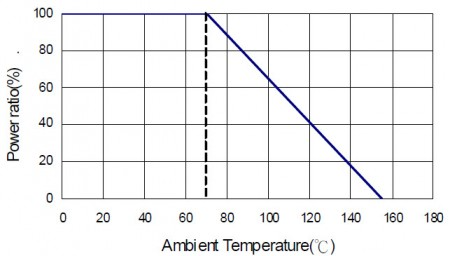

Derating Curve

Thick film Current sensing , high level spec, Low TC of 100ppm, tight tolerance of 1% ,sizes from 0201~2512, resistance range 1m~1R.
Special high power, size of 1225 is upto 3W , long termination to enhance power capability. High reliable current detecting resistors.

Features

3 Watts power rating in 1 Watt size, 1225 package.
Low TCR of ±100 PPM/°C.
Resistance values from 1m to 1 ohm.
High purity alumina substrate for high power dissipation.
Long side terminations with higher power rating.
RoHS Compliance.

Applications

Power Management Applications
Switching Power Supply
Over Current Protection in Audio Applications
Voltage Regulation Module (VRM)
DC-DC Converter, Battery Pack, Charger, Adaptor
Disk Driver

Construction

Part Numbering

Standard Electrical Specifications

±1%	±2%	±5%
Item Type	Power Rating at 70°C	Operating Temp. Range	Max. Operating Current	Resistance Range (mΩ)			TCR (PPM/°C)
Item Type	Power Rating at 70°C	Operating Temp. Range	Max. Operating Current	CS01 (0201)	1/20W	-55 ~ +155°C	TCR (PPM/°C)	0.70A	100 - 147 150 - 500 510 - 1000	±1000 ±600 ±300
CS02 (0402)	1/16W	1.11A	50 - 100 102 - 500 510 - 1000				±400 ±300 ±200
CS03 (0603)	1/10W	2.23A	20 - 50 51 - 100 102 - 300 301 - 1000				±600 ±400 ±300 ±200
CS05 (0805)	1/8W	2.50A	20 - 50 51 - 100 102 -196 200 - 1000				±600 ±400 ±300 ±200
CS06 (1206)	1/4W	5.00A	10 - 20 21 - 50 51 - 91 100 - 1000				±600 ±400 ±300 ±200
CS13 (1210)	1/2W	7.07A
CS10 (2010)	3/4W	8.66A
CS12 (2512)	1W	10.0A
CS25 (1225)	3W	31.6A	3 - 5 6 - 20 21 - 30 33 - 8000				±300 ±200 ±150 ±100
CS37 (3720)	1W	10.0A	10 - 18 20 - 500				±300 ±150
CS75 (7520)	2W	44.7A	－	1 - 4			±300
CS75 (7520)	2W	44.7A	5 - 10 11 - 350				±200 ±150
CS62 (0612)	1W	10.0A	10 - 27 30 - 91 100 – 499 500 - 1000				±600 ±300 ±200 ±100
